Application
Sound DampingSG-DM452
Vibration Damping Strip
High-density vibration damping strip using stabilized polymer damping material combined with heavy mineral powder. 45mm x 6m peel-and-stick. Ideal for metal studs and wall frames.
Product Description
SG-DM452 Vibration Damping Strip is high-density damping strip uses stabilized polymer damping material combined with heavy mineral powder to deliver excellent vibration-reduction and noise-control performance. It immediately alters the original vibration transmission path, effectively reducing structure-borne vibration and improving mid-to-low-frequency damping.
When applied on metal studs or wall frames, the damping strip minimizes vibration transfer at connection points, lowers resonance, and improves overall sound insulation stability.
Product Engineering Principle & Performance
Project Gallery
Product Engineering Principle
The SG-DM452 utilizes a three-layer construction for effective vibration damping:
- Non-woven Fabric - Top surface layer for durability and adhesion to wall boards
- Polymer Damping Material - Core layer of stabilized polymer combined with heavy mineral powder for vibration absorption
- Anti-stick Release Paper - Bottom peel-away layer for easy installation
This composite construction immediately alters the original vibration transmission path, effectively reducing structure-borne vibration and improving mid-to-low-frequency damping at metal stud connection points.
Why Choose SG-DM452?
The SG-DM452 targets one of the most common weak points in soundproofing systems: the rigid connection between metal studs and wall boards. Without damping at these connection points, vibration transfers directly through the framing, significantly reducing the effectiveness of insulation materials.
Key Benefits
- Excellent Vibration Reduction: Stabilized polymer with heavy mineral powder
- Mid-to-Low-Frequency Damping: Targets problematic frequency ranges
- Easy Installation: Peel-and-stick application requires no tools
- Perfect Width: 45mm sized for standard metal studs
- Three-Layer Construction: Non-woven fabric, polymer damping, and release paper
- Lightweight: 3.9kg per 6-meter roll for easy handling
Technical Innovation
The combination of stabilized polymer damping material with heavy mineral powder creates a high-density strip that immediately alters the vibration transmission path. When applied to metal studs, it breaks the rigid connection between the frame and wall boards, preventing structure-borne vibration from bypassing the insulation layer.
Installation Methods

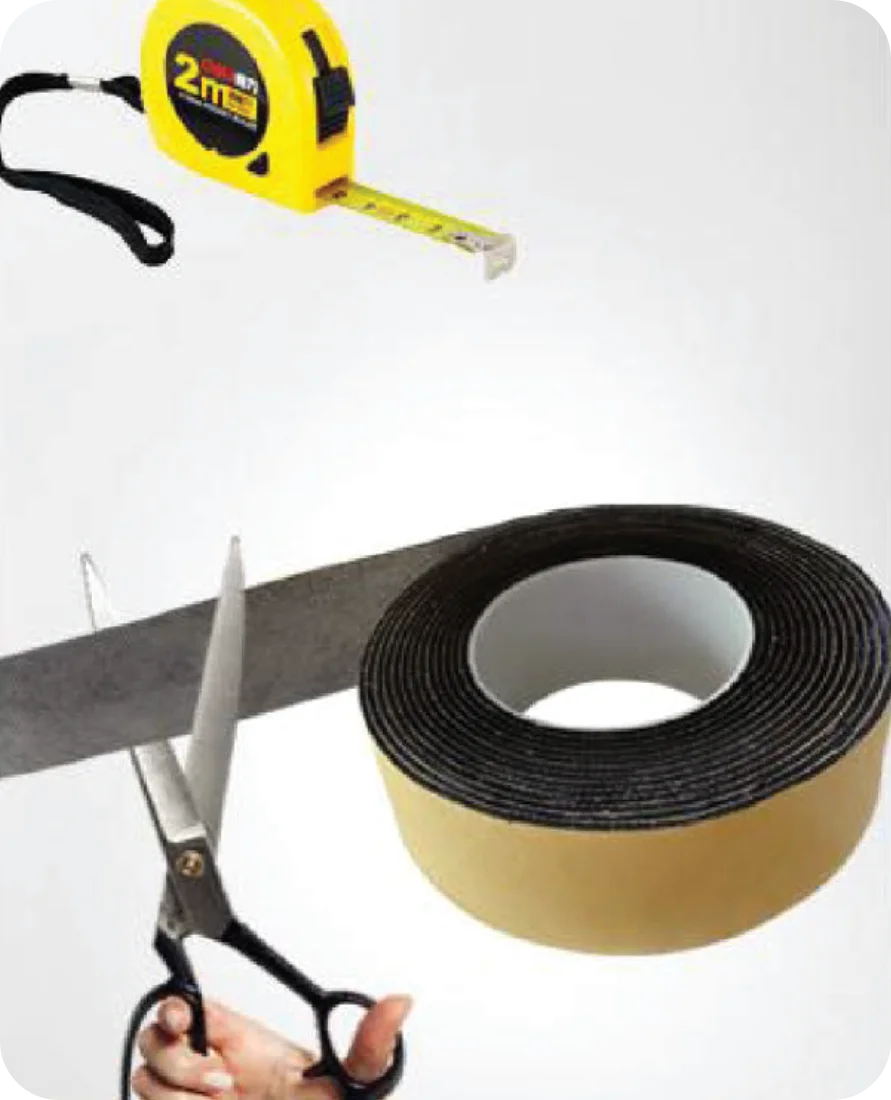

SG-DM452 features simple peel-and-stick installation:
- Peel the anti-stick release paper from the strip
- Apply the adhesive side directly along metal studs or wall frames
- Press firmly to ensure complete contact

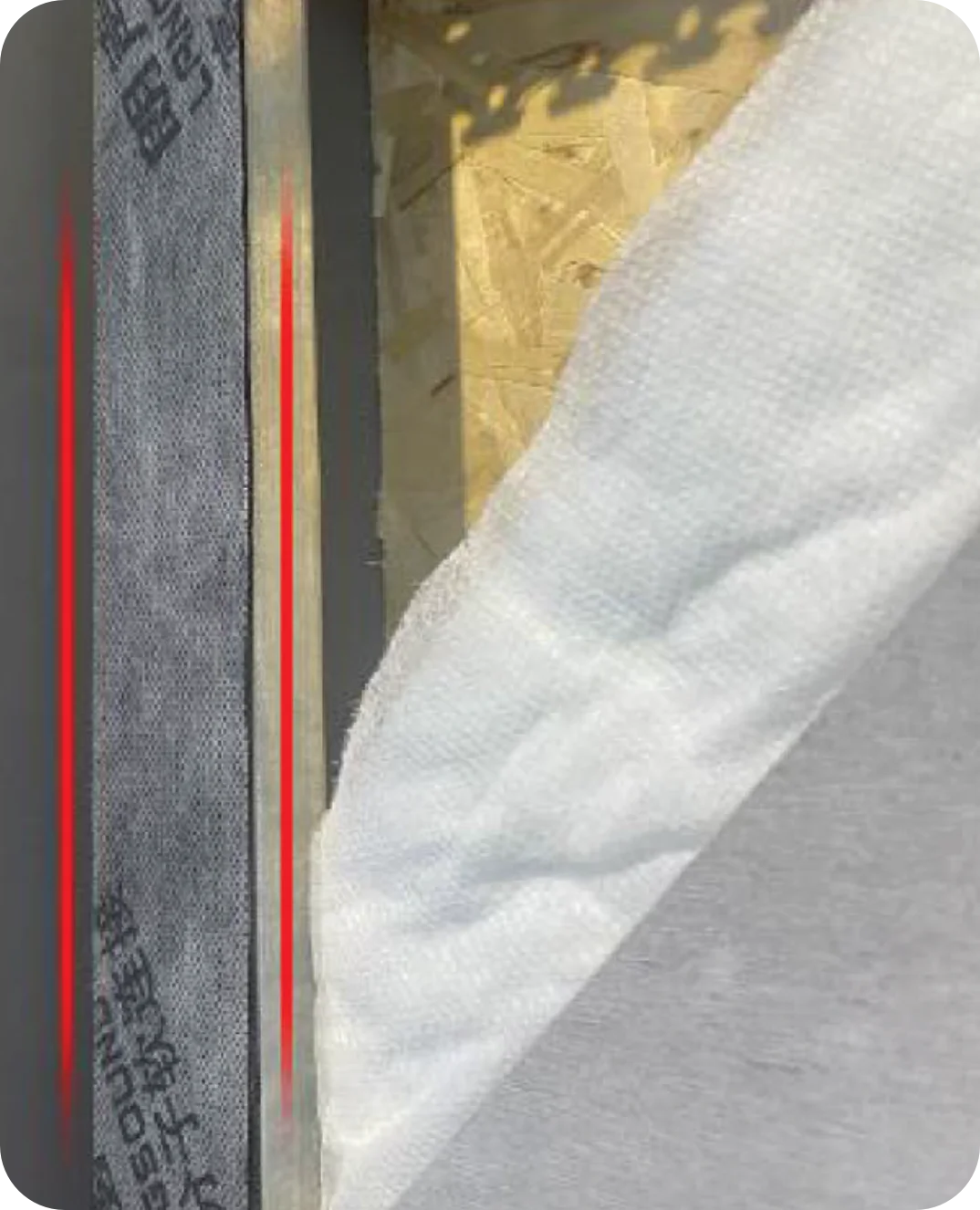

Apply the strip along the full length of metal studs before installing wall boards or acoustic panels. Focus on all connection points where framing contacts the structure.
Recommended Applications
SG-DM452 is essential for metal stud framing systems:
- Metal Stud Systems: Applied directly to studs before board installation
- Wall Frame Systems: Damping at frame-to-structure contact points
- Ceiling Grid Systems: Applied to ceiling grid runners and channels
- Professional Audio: Recording studios, broadcast studios
- Entertainment: Cinemas, KTV & karaoke rooms
