Sound DampingSG-DM102
Vibration Damping Mat
Vibration damping mat formulated with fine iron powder, modified mineral powder, calcium carbonate, and PVC. 2mm thickness, 1m x 10m roll. Ideal supplementary layer for wall and ceiling soundproofing systems.
Product Description
SG-DM102 Vibration Damping Mat is formulated with fine iron powder, modified mineral powder, calcium carbonate, and PVC, creating a dense and stable structure designed for soundproofing applications.
When installed on the surface of wall structures, it effectively reduces vibration transmission, lowers resonance, and enhances overall sound insulation performance. Its high mass and damping properties make it ideal as a supplementary layer in wall and ceiling soundproofing systems.

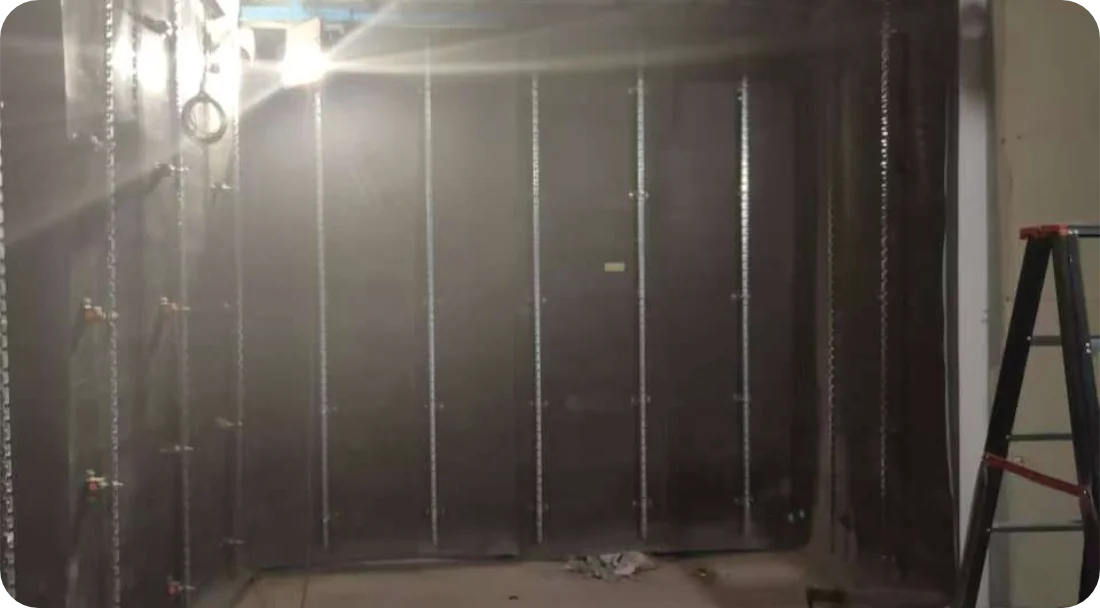

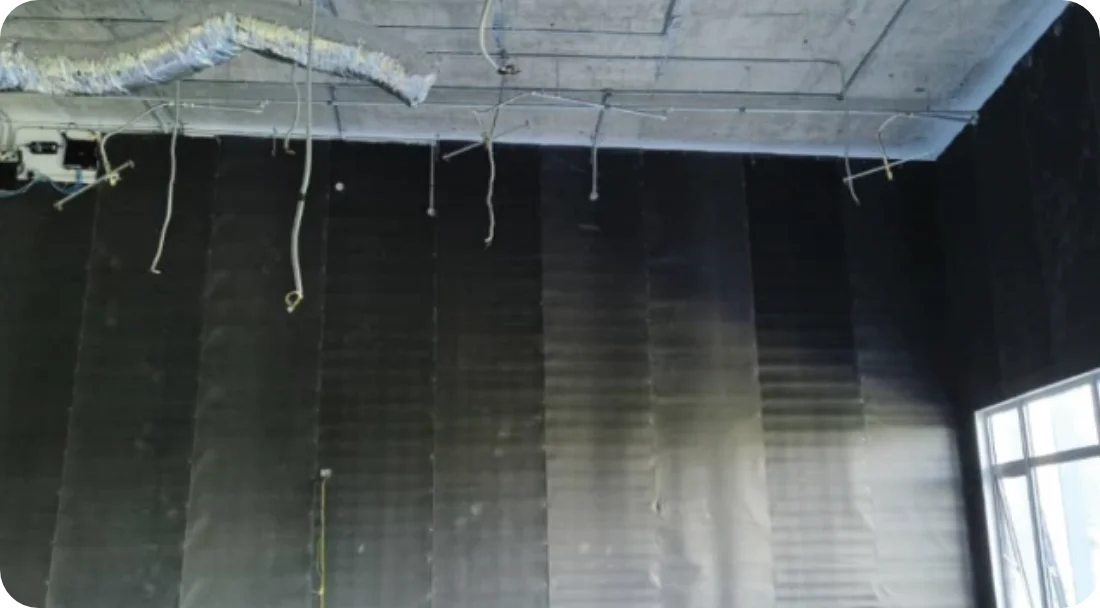

Project Gallery
Product Engineering Principle
The SG-DM102 utilizes a high-mass composite formulation for effective vibration damping:
- Fine Iron Powder - Provides high mass density for maximum vibration absorption
- Modified Mineral Powder - Enhances structural stability and damping performance
- Calcium Carbonate - Adds mass and improves sound transmission loss
- PVC Binder - Creates flexible, workable mat that conforms to surfaces
This dense and stable structure effectively reduces vibration transmission, lowers resonance, and enhances overall sound insulation performance when applied to wall and ceiling surfaces.
Why Choose SG-DM102?
The SG-DM102 is an essential supplementary layer in professional soundproofing systems. Its high mass and damping properties provide the critical vibration barrier needed between structural surfaces and acoustic insulation boards.
Key Benefits
- High Mass Density: Iron powder and mineral composition for effective vibration damping
- Large Coverage: 10m² (107 sqft) per roll for efficient installation
- Flexible Application: Conforms to wall and ceiling surfaces
- Dual Installation: Adhesive or mechanical attachment options
- Versatile Use: Suitable for walls, ceilings, and floor systems
- Thin Profile: 2mm thickness minimizes space requirements
Technical Innovation
The combination of fine iron powder, modified mineral powder, calcium carbonate, and PVC creates a dense, flexible mat that adds significant mass to wall and ceiling assemblies. This mass loading approach effectively reduces resonance and improves the sound transmission loss of the overall system.
Installation Methods
SG-DM102 can be installed using two methods:
- Adhesive application directly to structural surfaces
- Mechanical fastening with screws or staples
Apply the mat directly to structural surfaces before installing shock dampers and sound insulation boards. The mat breaks the rigid connection between the original structure and the new acoustic layer, preventing sound bridges.
Recommended Applications
SG-DM102 is essential as a supplementary layer in soundproofing systems:
- Wall Systems: Applied to wall surfaces before insulation board installation
- Ceiling Systems: Applied to ceiling structures for vibration reduction
- Professional Audio: Recording studios, broadcast studios
- Entertainment: Cinemas, KTV & karaoke rooms, home theaters
