Sound InsulationSG-CN10
Composite Sound Insulation Board
High-performance composite sound insulation board with 9mm Silicone, 2mm EPDM damping layer, and 8mm CFB. Achieves 35dB sound reduction. Ideal for residential, recording studios, cinemas, and clubs.
Product Description
SG-CN10 Composite Sound Insulation Board is designed according to the transmission characteristics of sound. It consists of 3 layers of materials that are 9+2+8mm each with a total of 19mm thickness.
A damping layer selection of 2mm EPDM (Ethylene Propylene Diene Monomer) sandwiched between a layer of 9mm high-density Silicone Board and a layer of 8mm CFB (Cement Fibre Board). By combining materials with different masses, stiffness levels, and thicknesses, the system disrupts multiple sound frequencies and increases STC (Sound Transmission Class) performance.
Product Engineering Principle & Performance

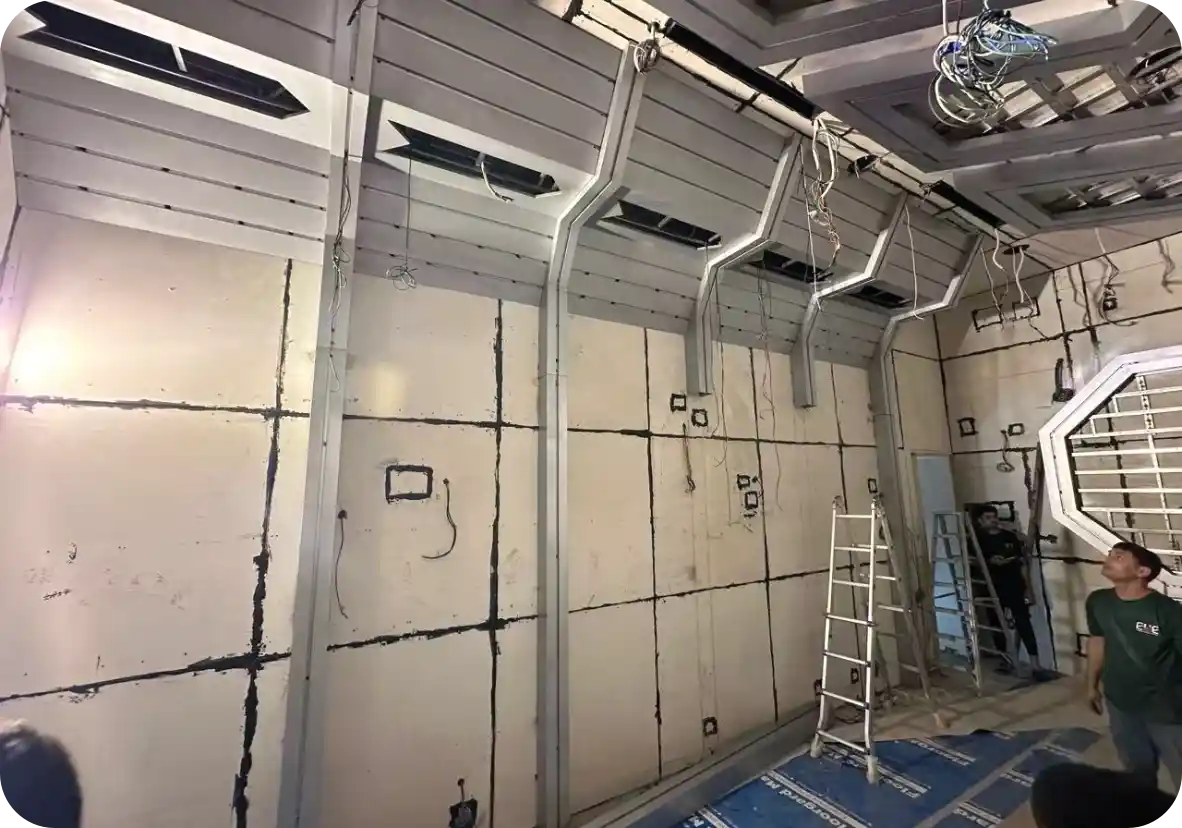

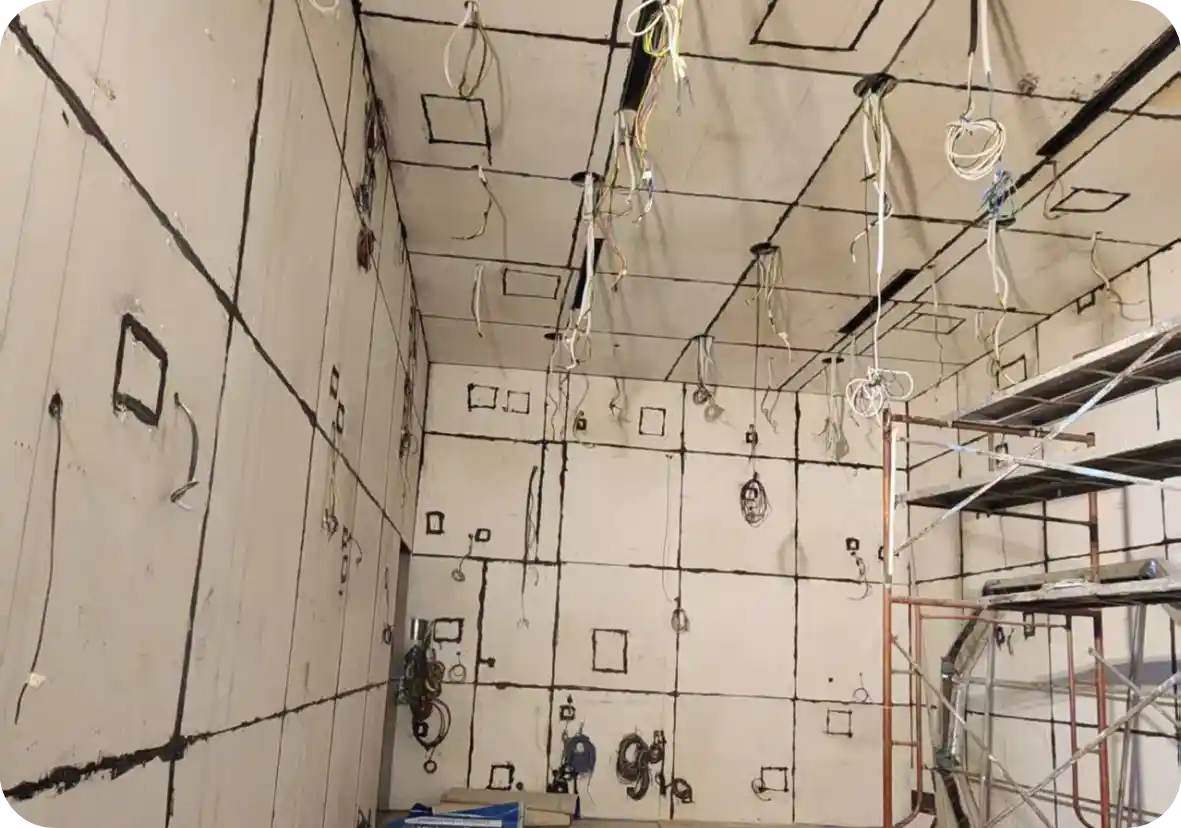

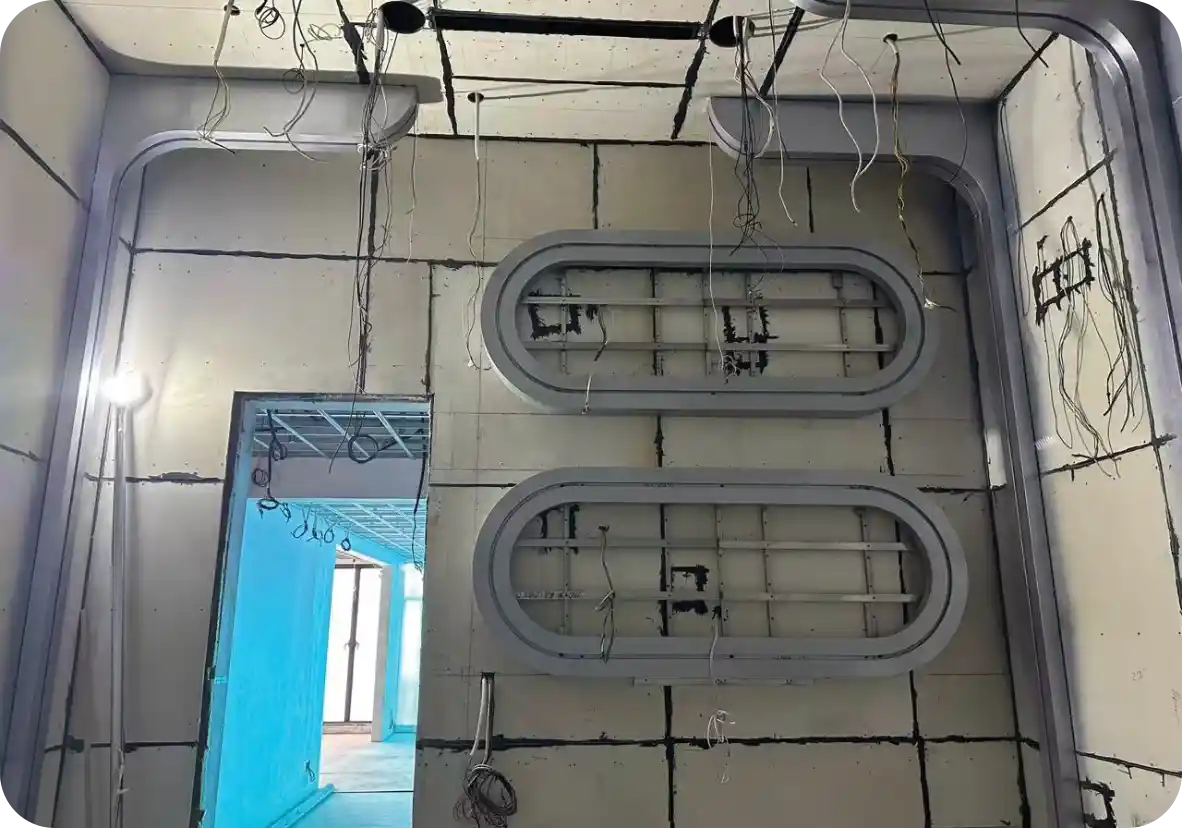

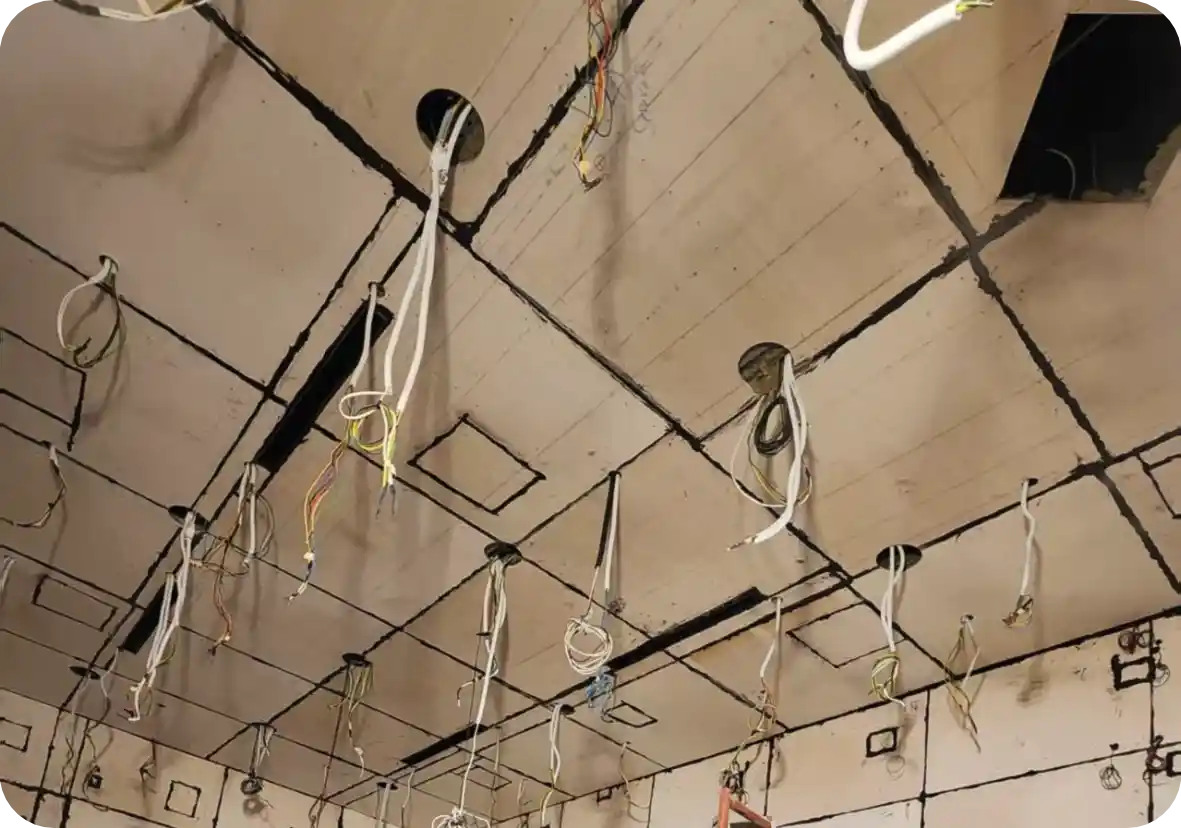

Project Gallery
Product Engineering Principle

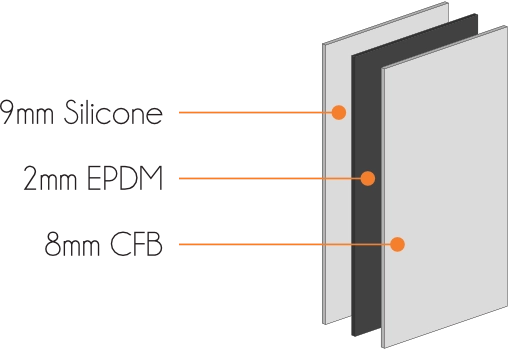

The SG-CN10 utilizes a sophisticated three-layer construction that delivers the highest sound isolation in our composite board range:
- 9mm Silicone Board - High-density outer layer provides superior mass and fire resistance
- 2mm EPDM Damping Layer - Absorbs vibration and disrupts sound transmission
- 8mm CFB (Cement Fibre Board) - Dense second layer for maximum performance
This 9+2+8 configuration effectively disrupts multiple sound frequencies, making it the top choice for demanding applications where superior acoustic isolation is critical.
Why Choose SG-CN10?
The SG-CN10 offers the highest sound reduction rating in our composite board range at 35dB, making it ideal for entertainment venues, recording studios, and any space requiring premium sound isolation.
Key Benefits
- 35dB Sound Reduction: Highest performing composite board in the range
- Premium Construction: High-density Silicone and Cement Fibre Board layers
- Fire Retardant: Class A non-combustible for maximum safety
- Versatile Applications: From residential to commercial entertainment venues
- Easy Installation: Can be cut with saw, drilled, and secured with self-tapping screws
- Multiple Finish Options: Compatible with wallpaper, glass, tiles, and cement finishes
Technical Innovation
The EPDM damping layer acts as a vibration absorber, converting sound energy into minimal heat energy. Combined with the mass-spring-mass principle of the Silicone Board and CFB layers, this creates superior sound transmission loss across a wide frequency range.
Installation Methods
SG-CN10 can be installed using standard construction methods:
- Direct mounting with self-tapping screws to metal or wood studs
- Adhesive application combined with mechanical fastening
- Framework mounting for suspended ceiling applications
The board can be easily cut to size using standard carpentry tools, making it adaptable to various project requirements.
Recommended Applications
SG-CN10 is specifically designed for environments requiring the highest level of sound isolation:
- Entertainment: Clubs, KTV & karaoke rooms, cinemas
- Professional: Recording studios, broadcast rooms
- Hospitality: Hotels, serviced apartments
- Residential: Condominiums, apartments, private homes
- Commercial: Meeting rooms, office partitions
