Installation Principle

Room-in-Room Acoustic Isolation

Professional acoustic isolation uses a room-in-room construction principle — building a mechanically decoupled inner structure that prevents sound transmission through the building fabric.

The fundamental approach combines three layers of defence: vibration dampers to decouple the inner room from the building structure, mineral wool to absorb airborne sound within the cavity, and composite insulation boards to block remaining sound energy through the Mass-Spring-Mass principle.

Every connection point between the inner room and outer structure is a potential sound bridge. Shock dampers, vibration damping mats, and acoustic sealant work together to ensure complete mechanical isolation at every junction.

Key Insight

Doubling the density of a wall only improves sound reduction by approximately 6 dB. This is why a multi-layer system with decoupling, absorption, and mass is far more effective than simply adding more material to a single wall.

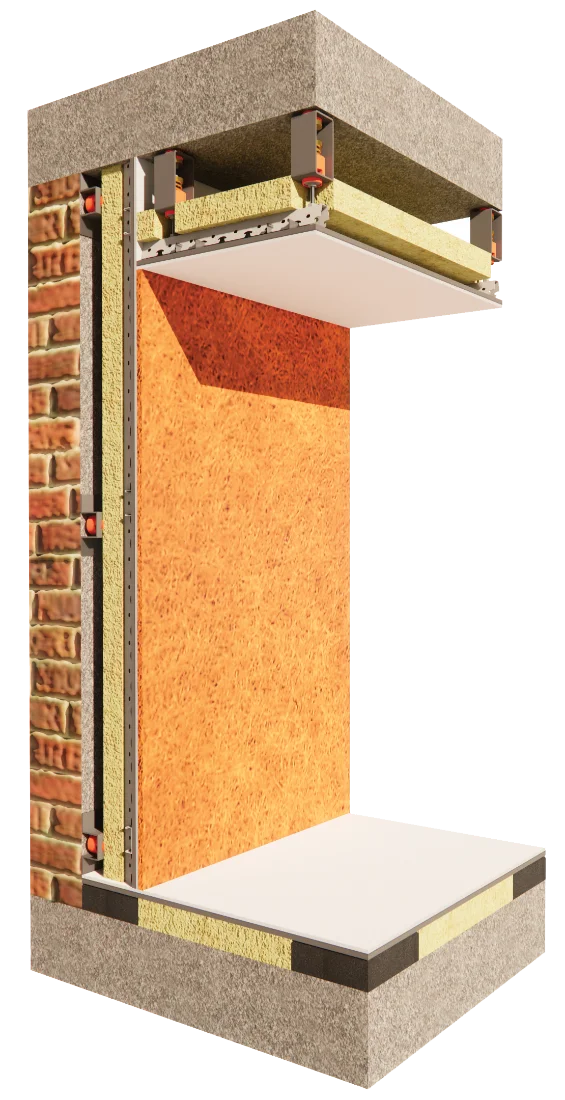

3D isometric cutaway diagram showing room-in-room acoustic isolation layers including shock dampers, mineral wool insulation, and composite sound insulation boards

Ceiling System

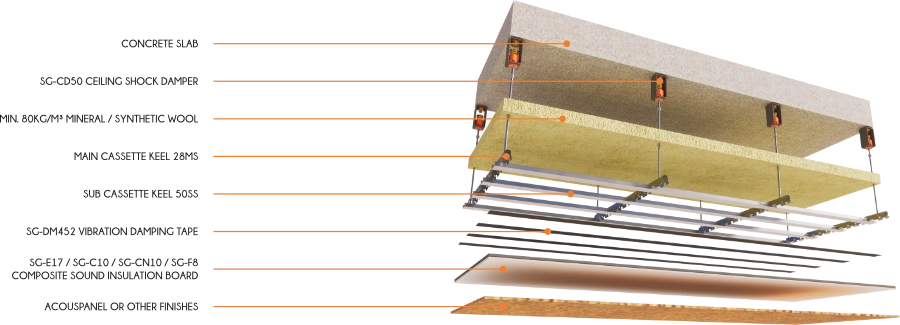

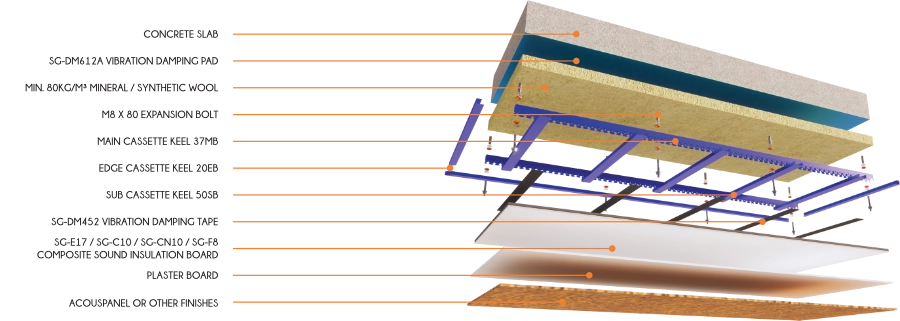

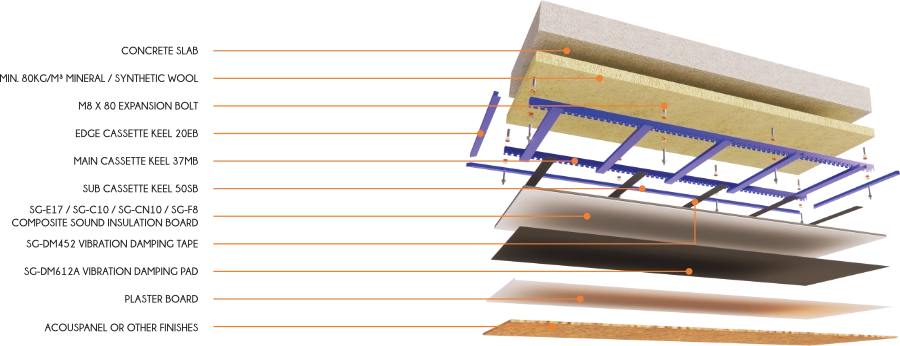

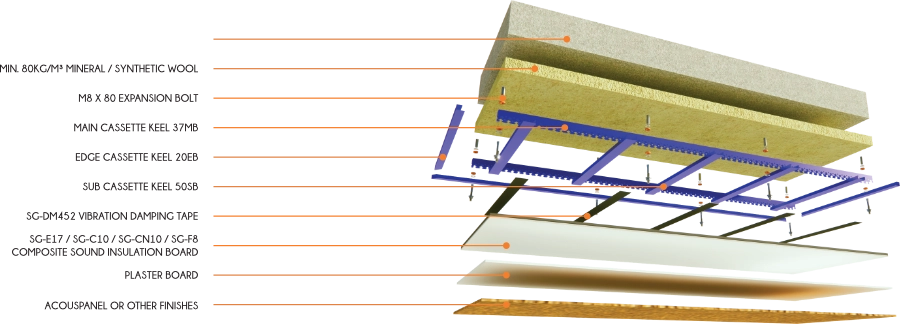

Ceiling Mounting Structure

Six-layer suspended ceiling system designed to isolate impact noise from above and prevent airborne sound leakage between floors.

Concrete Slab

Existing structure

Ceiling Shock Damper

Break sound bridges · 50 × 50 × 100 mm

SG-CD50 →

Mineral / Synthetic Wool

Sound absorption · Min. 80 kg/m³ · 600 × 1200 × 50 mm

Cassette Keel

Structural support · Main: 28 mm, Auxiliary: 50 mm

Vibration Damping Mat

Minimize rigid connections · 1000 × 10000 × 2 mm

SG-DM102 →

Insulation Board

Sound insulation · 1200 × 1200 × 16–18 mm

SG-E17 SG-C10 SG-CN10

Layer	Role	Product	Specification
1. Concrete Slab	Existing structure	—	Existing building element
2. Ceiling Shock Damper	Break sound bridges	SG-CD50	50 × 50 × 100 mm
3. Mineral / Synthetic Wool	Sound absorption	Min. 80 kg/m³	600 × 1200 × 50 mm
4. Cassette Keel	Structural support	—	Main: 28 mm, Auxiliary: 50 mm
5. Vibration Damping Mat	Minimize rigid connections	SG-DM102	1000 × 10000 × 2 mm
6. Insulation Board	Sound insulation	SG-E17 / SG-C10 / SG-CN10	1200 × 1200 × 16–18 mm

Every connection point is a potential sound bridge. Every layer has a purpose.

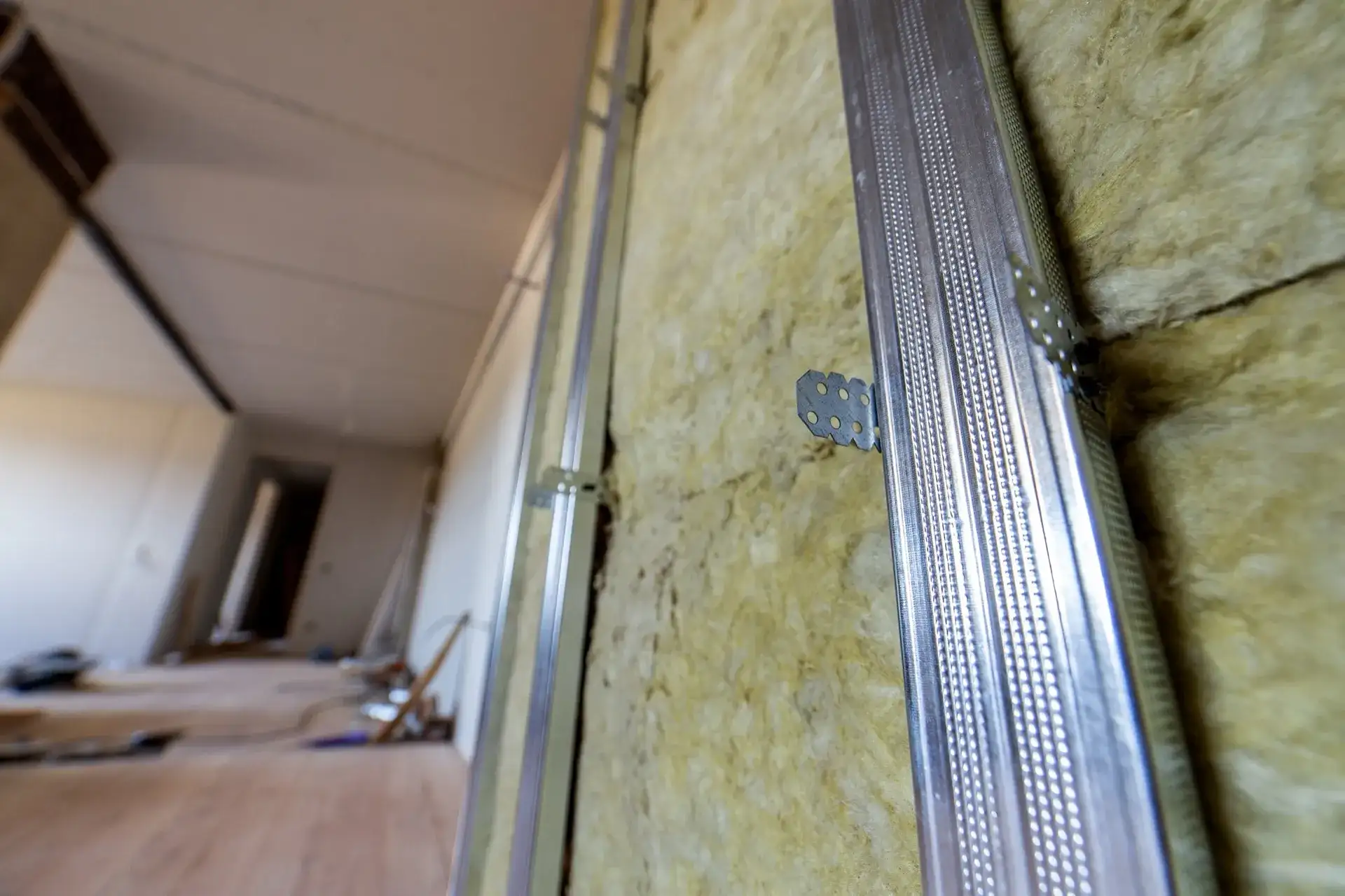

Wall System

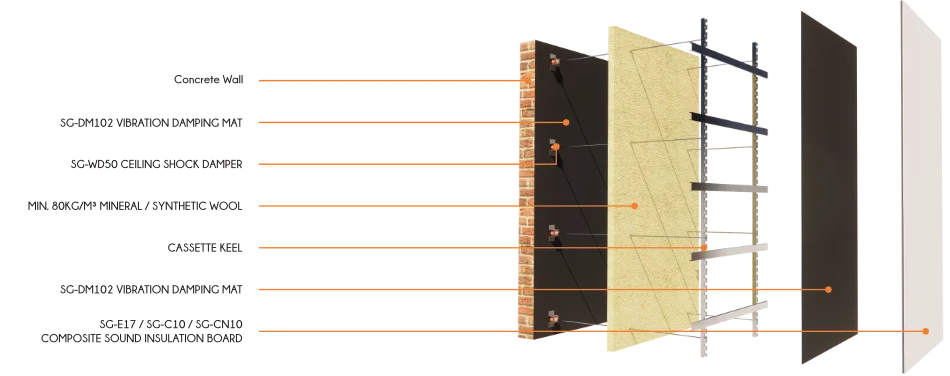

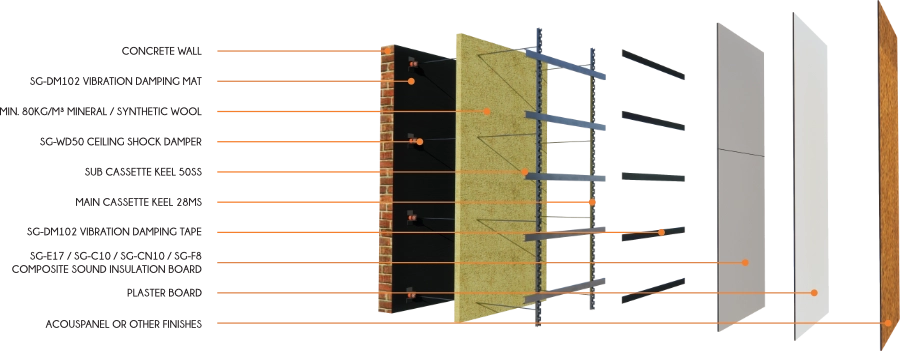

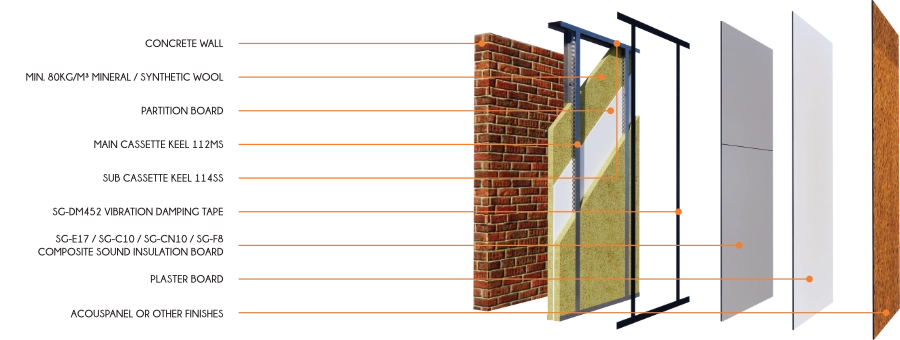

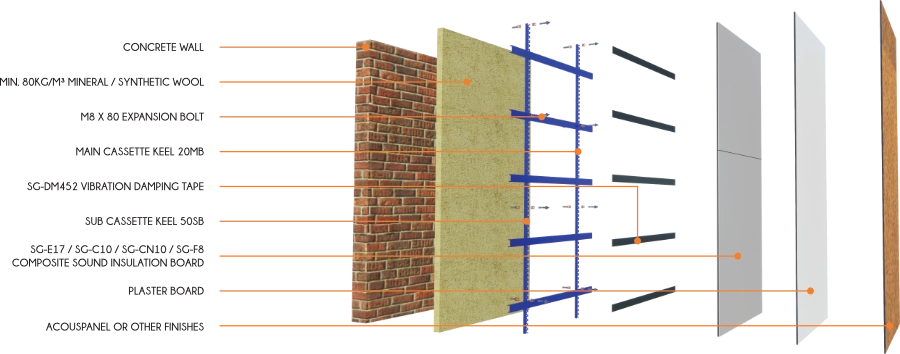

Wall Mounting Structure

Seven-layer wall system that mechanically decouples the inner acoustic wall from the building structure, blocking both airborne and structure-borne sound.

Concrete Wall

Existing structure

Vibration Damping Mat

Break sound bridges · 1000 × 10000 × 2 mm

SG-DM102 →

Wall Shock Damper

Break sound bridges · 115 × 50 × 55 mm

SG-WD50 →

Mineral / Synthetic Wool

Sound absorption · Min. 80 kg/m³ · 600 × 1200 × 50 mm

Cassette Keel

Structural support · Main: 28 mm, Auxiliary: 50 mm

Vibration Damping Mat

Minimize rigid connections · 1000 × 10000 × 2 mm

SG-DM102 →

Insulation Board

Sound insulation · 1200 × 1200 × 16–18 mm

SG-E17 SG-C10 SG-CN10

Layer	Role	Product	Specification
1. Concrete Wall	Existing structure	—	Existing building element
2. Vibration Damping Mat	Break sound bridges	SG-DM102	1000 × 10000 × 2 mm
3. Wall Shock Damper	Break sound bridges	SG-WD50	115 × 50 × 55 mm
4. Mineral / Synthetic Wool	Sound absorption	Min. 80 kg/m³	600 × 1200 × 50 mm
5. Cassette Keel	Structural support	—	Main: 28 mm, Auxiliary: 50 mm
6. Vibration Damping Mat	Minimize rigid connections	SG-DM102	1000 × 10000 × 2 mm
7. Insulation Board	Sound insulation	SG-E17 / SG-C10 / SG-CN10	1200 × 1200 × 16–18 mm

Floor System

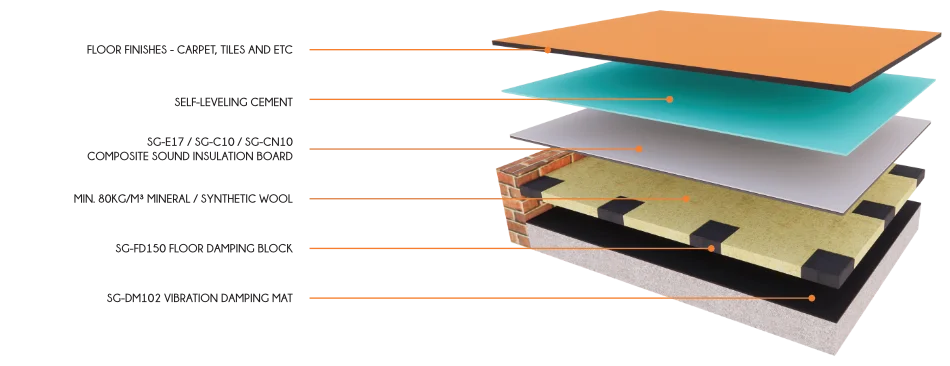

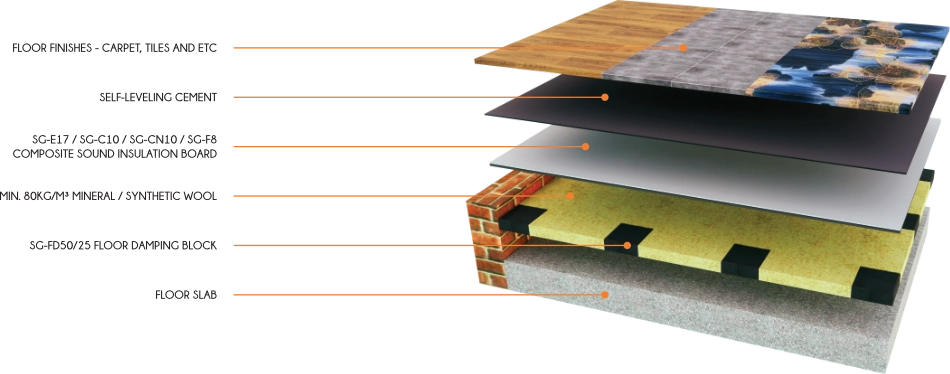

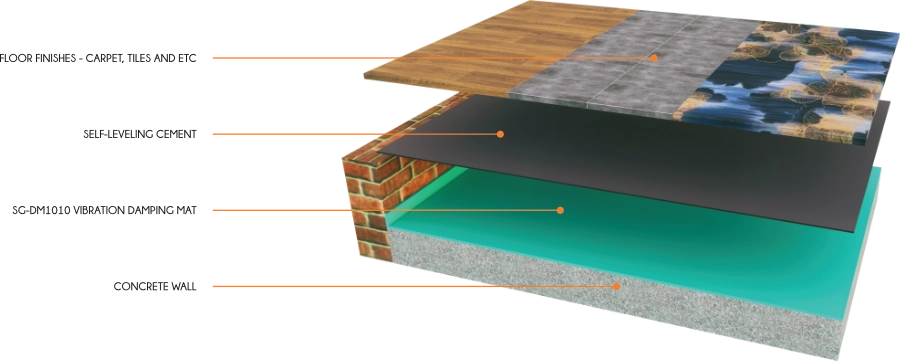

Floor Mounting Structure

Six-layer floating floor system that isolates the room from structure-borne vibration transmitted through the ground, supporting both impact and airborne sound control.

Vibration Damping Mat

Base isolation layer · 1000 × 10000 × 2 mm

SG-DM102 →

Floor Damping Block

Structural decoupling · 150 × 150 × 50 mm, 600 mm grid

SG-FD150 →

Mineral / Synthetic Wool

Sound absorption · Min. 80 kg/m³ · 600 × 1200 × 50 mm

Insulation Board

Sound insulation · 1200 × 1200 × 16–18 mm

SG-E17 SG-C10 SG-CN10

Self-Leveling Cement

Protection layer · Applied on-site

Floor Finishes

Carpet, tiles, vinyl, etc.

Layer	Role	Product	Specification
1. Vibration Damping Mat	Base isolation layer	SG-DM102	1000 × 10000 × 2 mm
2. Floor Damping Block	Structural decoupling	SG-FD150	150 × 150 × 50 mm, 600 mm grid
3. Mineral / Synthetic Wool	Sound absorption	Min. 80 kg/m³	600 × 1200 × 50 mm
4. Insulation Board	Sound insulation	SG-E17 / SG-C10 / SG-CN10	1200 × 1200 × 16–18 mm
5. Self-Leveling Cement	Protection layer	—	Applied on-site
6. Floor Finishes	Final surface	—	Carpet, tiles, vinyl, etc.
